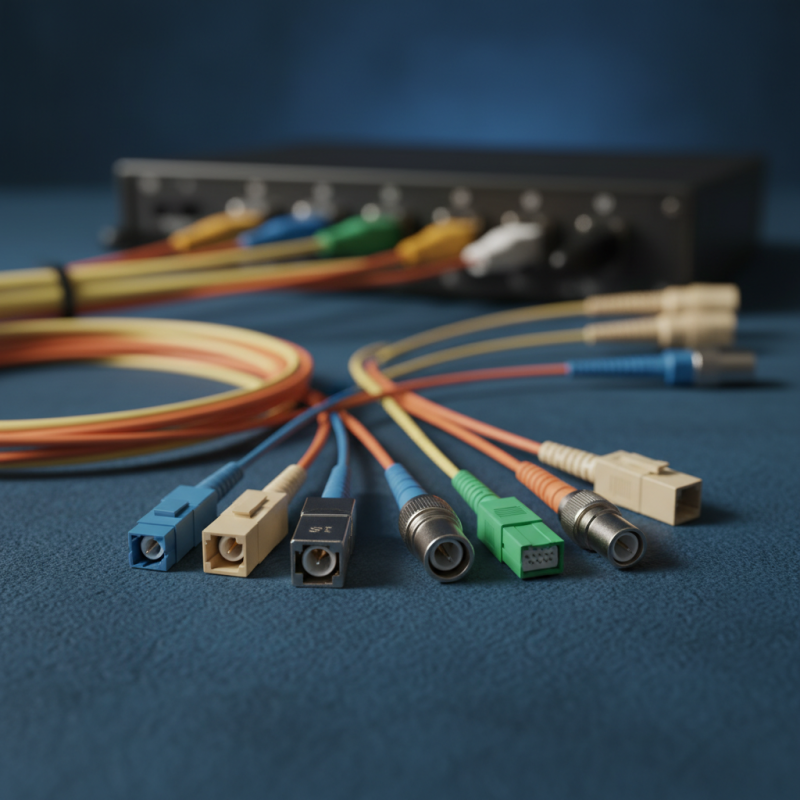

Fiber Optic Connectors What You Need to Know About Them?

Fiber Optic Connectors play a critical role in modern communication technology. They serve as the interface between fiber optic cables and various devices. Understanding these connectors is essential for anyone working with fiber optics.

The variety and complexity of fiber optic connectors can be overwhelming. Each type has its own specifications and applications. Some common types include SC, LC, and ST connectors. Choosing the right one can impact performance and reliability.

However, it's easy to overlook the specific needs of your project. Not all connectors fit every scenario. Mistakes in selection can lead to signal loss and network issues. It's crucial to reflect on these factors before making a decision. In this guide, we will explore what you need to know about fiber optic connectors to ensure optimal connections.

Types of Fiber Optic Connectors: An Overview of Common Designs

Fiber optic connectors play a significant role in modern communication systems. They ensure efficient transmission of data over long distances. There are several common designs in use today. The SC connector is a popular choice due to its simplicity and ease of use. It features a push-pull mechanism, which makes installation straightforward.

The LC connector is another widely used type. It is compact and well-suited for high-density applications. A report by the Fiber Optic Association highlights that the LC connector accounts for over 50% of the market share in fiber optic connectors. Meanwhile, the ST connector, with its bayonet-style locking mechanism, remains prevalent in certain legacy systems, making it a staple in many installations.

Tip: Always inspect connectors for dirt or damage. Even a small amount of dirt can degrade signal quality. Another tip involves using the correct tools for installation. Misalignment can lead to connection issues, which may require retermination.

Choosing the right type of connector can be challenging. Consider the specific requirements of your network. Compatibility with existing systems is vital. Not all connectors fit all applications. Remember, the wrong choice might waste time and resources.

Key Specifications: Understanding Insertion Loss and Return Loss Metrics

Insertion loss and return loss are crucial metrics in the world of fiber optic connectors. Insertion loss measures the amount of signal power lost when light passes through a connector. This loss is often unavoidable. Typical values range from 0.1 dB to 0.5 dB per connection. Even the best connectors will have some insertion loss. It’s essential to consider this when designing a fiber optic network.

Return loss, on the other hand, assesses the reflected power in the connector. It indicates how much of the signal bounces back towards the source. A higher return loss means better performance. Ideally, return loss values should be above 25 dB. Achieving high return loss can be challenging. Poorly aligned connectors contribute to increased reflection, affecting overall network performance.

Understanding these metrics is vital for anyone working with fiber optics. They influence the reliability and efficiency of data transmission. Highlighting these factors helps in making informed decisions. Proper testing and monitoring can prevent unforeseen issues. Balancing insertion loss and return loss should shape your overall strategy. Ignoring any of these metrics could lead to suboptimal network performance.

Fiber Optic Connectors: What You Need to Know About Them?

Fiber Optic Connector Standards: A Look at SC, LC, ST, and MTP/MPO Types

Fiber optic connectors play a crucial role in high-speed data transmission. Understanding the different types helps ensure optimal performance and compatibility. Among the most common types are SC, LC, ST, and MTP/MPO connectors.

SC connectors are known for their square shape and push-pull design. They offer low insertion loss and high return loss, making them a preferred choice in data centers. Meanwhile, LC connectors are smaller and provide a higher density connection, which is essential in space-constrained areas. Reports suggest that the market for LC connectors is growing, highlighting their efficiency in modern networking environments.

ST connectors utilize a bayonet-style mount, ensuring secure connections. However, they are less frequently chosen for new installations due to the rise of more compact options. MTP/MPO connectors stand out for their multi-fiber capabilities, making them pivotal in large-scale applications. With the increasing demand for bandwidth, these connectors have shown a growth rate of over 15% annually, as indicated by recent industry data. Choosing the right connector type can dramatically affect network performance and future scalability.

Installation and Maintenance: Best Practices for Optimal Performance

Fiber optic connectors play a crucial role in maintaining system performance. Proper installation is vital. According to a recent industry report, up to 85% of fiber optic failures are due to poor connector installation. Correct alignment and cleanliness enhance signal quality. A dirty connector can lead to significant attenuation, which can degrade performance. Regular inspections should be part of any maintenance routine.

Maintaining fiber optic connectors requires specific practices. Use specialized cleaning tools designed for fiber optics. Avoid using solvents that can leave residue. It's important to visually inspect connectors for damage. Even minor wear can affect performance. A study found that proactive maintenance can improve system reliability by up to 90%. Educating staff on handling procedures is equally critical. Human error is a common issue, often leading to connector mishaps.

In conclusion, the focus should be on detailed instructions for installation and maintenance. Ensure that all team members understand the importance of cleanliness and the right tools. Reflect on the mistakes made in past projects. Learning from these errors can lead to significant performance improvements.

Future Trends in Fiber Optic Connectors: Innovations and Industry Forecasts

The landscape of fiber optic connectors is evolving rapidly. New innovations are reshaping how we connect and communicate. For instance, advanced manufacturing techniques are enabling lighter and more durable connectors. These enhancements allow for better performance in diverse environments, but they often come with challenges that need addressing.

Another significant trend is the push towards miniaturization. Smaller connectors can free up space in crowded installations. They offer great potential in dense network environments, such as data centers. However, with these advancements, the risk of increased fragility must be considered. Ensuring reliability in these compact designs is crucial, yet often overlooked.

Sustainability is also gaining traction in the industry. Eco-friendly materials are becoming more prevalent, reflecting a growing awareness of environmental impact. This trend is promising but raises questions about long-term performance. Balancing sustainability with functionality requires ongoing innovation. As the industry adapts to these changes, continuous reflection on best practices will be essential.
